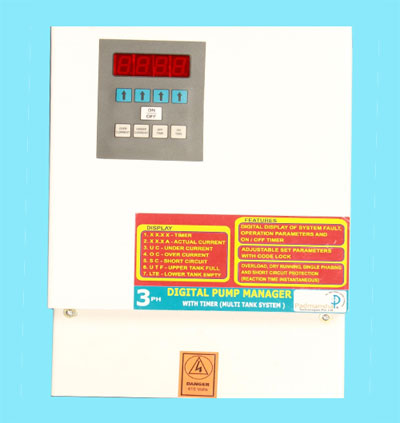

Features :
1. Digital display for parameters, parameter settings & fault indication.
2. Digital code lock for system parameter settings
3. Inbuilt starter.
4. Probe-less dry run sensing
5. Precise water level sensing in SUMP tank and overhead tank to avoid wastage of water.
6. Fully automated operation.
7. Protection of pump motor from over current & under current.
8. Protection of motor against Single Phasing & reverse current phasing in three phase panels
9. Complete protection of pump motor.
10. provision for Float switch & sensors for water level detection.
11. Also available with RTC (Real Time Clock) as per customer requirements.
1. Digital display for parameters, parameter settings & fault indication.
2. Digital code lock for system parameter settings
3. Inbuilt starter.
4. Probe-less dry run sensing
5. Precise water level sensing in SUMP tank and overhead tank to avoid wastage of water.
6. Fully automated operation.
7. Protection of pump motor from over current & under current.
8. Protection of motor against Single Phasing & reverse current phasing in three phase panels
9. Complete protection of pump motor.
10. provision for Float switch & sensors for water level detection.
11. Also available with RTC (Real Time Clock) as per customer requirements.
12. Highly accurate reliable & user friendly panel operation.
13. Manual START STOP push button to start & stop the motor in case of circuit failure in DOL & STAR DELTA Panels.
14. Anti rusting coating for enclosures of panel with IP 54 standard enclosure
Advanced Features : 1) Pressure switch provision to operate panel depending on the cut-off and cut-in setting of pressure switch
2) Panel is also available with pressure transmitter provision in which the values for cutoff pressure and cut-in pressure settings are done in the controller of the panel
3) Single panel is capable of delivering the water from one tank/bore well to multiple tank
Basic working Principle of panel : The operating principle of the panel is Multi Tank System the panel operates on set value of ON time & stops its operation as the pressure increases above the cut-off point. The ON time and OFF time are decided depending up on the time taken to fill up the overhead tank. The panel operates on pressure switch or pressure transmitter depending upon the pressure requirements and the set value of ON TIME and cut-off pressure by detecting the water level of the storage (sump)tank or the under ground bore well. The panel turns off the motor when the pressure exceeds the cut-off value.

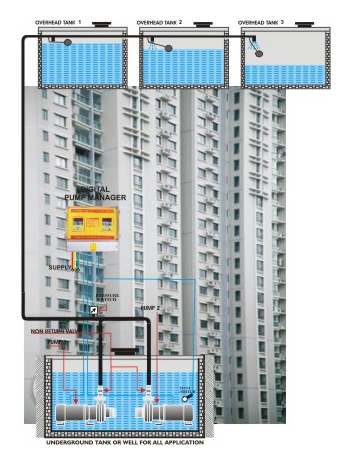

Applications of Panel I. The panel is best suited & comprises of fully automated controlling logic for water transferring from single SUMP tank to Multiple overhead tank situated on higher altitudes in residential societies, hospitals, restaurants, industries etc.
II. The Panel is very useful for residential complex & bungalows with single or main water source in one side & tanks on each bungalows.
III. The panel can also be used in irrigation and long distance pipelines to full fill water requirements.
Other Variants I. MTS panel is available in DELUXE type with two pump controlling by keeping one pump in operation mode & other in standby mode in 2d model.
II. The panel is also available in three pumps, four pump till six pump controlling.
III. MTS panel is also available with starting method as DOL & STAR DELTA from 7.5HP to higher versions.
